SLIM4TRG-5CCT

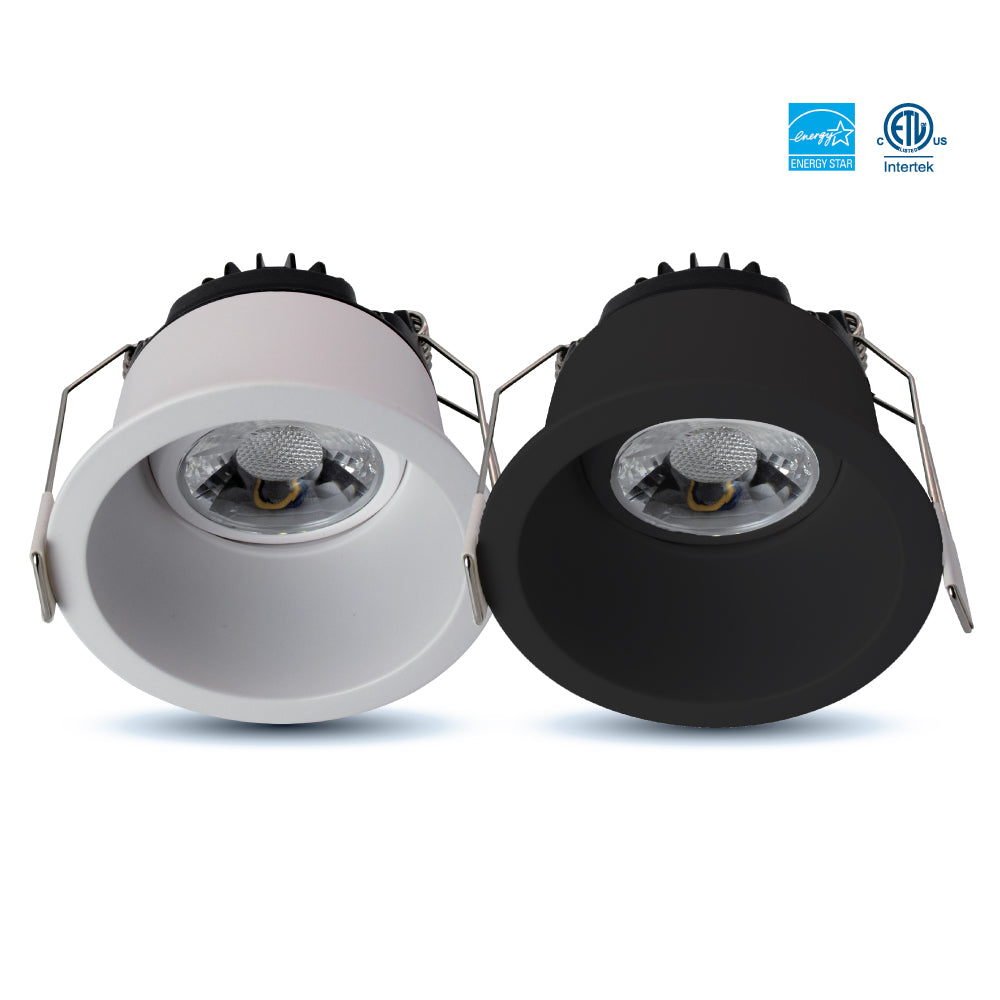

4″ regressed LED gimbal downlight with sleek design and selectable CCT for stylish, adjustable illumination.

Color: White

HIGHLIGHTS

  • Construction: Durable aluminum body with adjustable gimbal
  • Installation: Simple snap-in design for fast and easy setup
  • Housing: No housing required for installation
  • Adjustability: 30° tilt and 360° rotation for flexible light direction
  • Dimming: Compatible with industry-standard TRIAC/ELV dimmers (100–10%)
  • Location Rating: Suitable for wet locations
  • Also available in 2 inch - SLIM2TRG-5CCT

5CCT Selectable

Specifications
  • Wattage
    14W
  • Voltage
    120V AC
  • Lumens
    1200 lmn
  • Beam Angle
    38°
  • CRI
    90Ra
  • Air Tight
    Yes
  • Dimmable
    Yes (TRIAC dimming)
  • Lifetime
    50,000 hours
  • Rating
    IC rated/ Indoor use/ Wet Location
  • Grade of Protection
    IP54
  • Application
    Recessed ceiling / Halls / Home / Office / Store / Cafe
  • Cutout
    Ø4-1/4” (108mm)
  • Colour Temperature
    5CCT [2700K/3000K/3500K/4000K/5000K]
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 Years

CERTIFICATIONS

Product features

ACCESSORIES (sold separately)

PLATE13-4A | PLATE13-4A-L | PLATE26-4A | PLATE26-4A-L
PLATE13-4A | PLATE13-4A-L | PLATE26-4A | PLATE26-4A-L"
(Construction plate made up of galvanized steel for recessed lighting)
PLATE4A-HB
PLATE4A-HB
(Galvanized steel mounting plate with hanger bars)
CORD-B24 | CORD-B120
CORD-B24 | CORD-B120
(Flexible Connector 2FT/10FT)
DMD-ELV
DMD-ELV
(Electronic low voltage dimmer switch with single pole 3 way wiring)

PRODUCT SHEETS

Spec Sheet

SLIM4TRG-5CCT Spec Sheet

Instruction Manual

SLIM2TRG-5CCT Instruction Manual (english)
SLIM2TRG-5CCT Instruction Manual (french)

Dimmer List

SLIM4TRG-5CCT Compatible Dimmer List

IES Files

SLIM4TRG-5CCT IES Files
