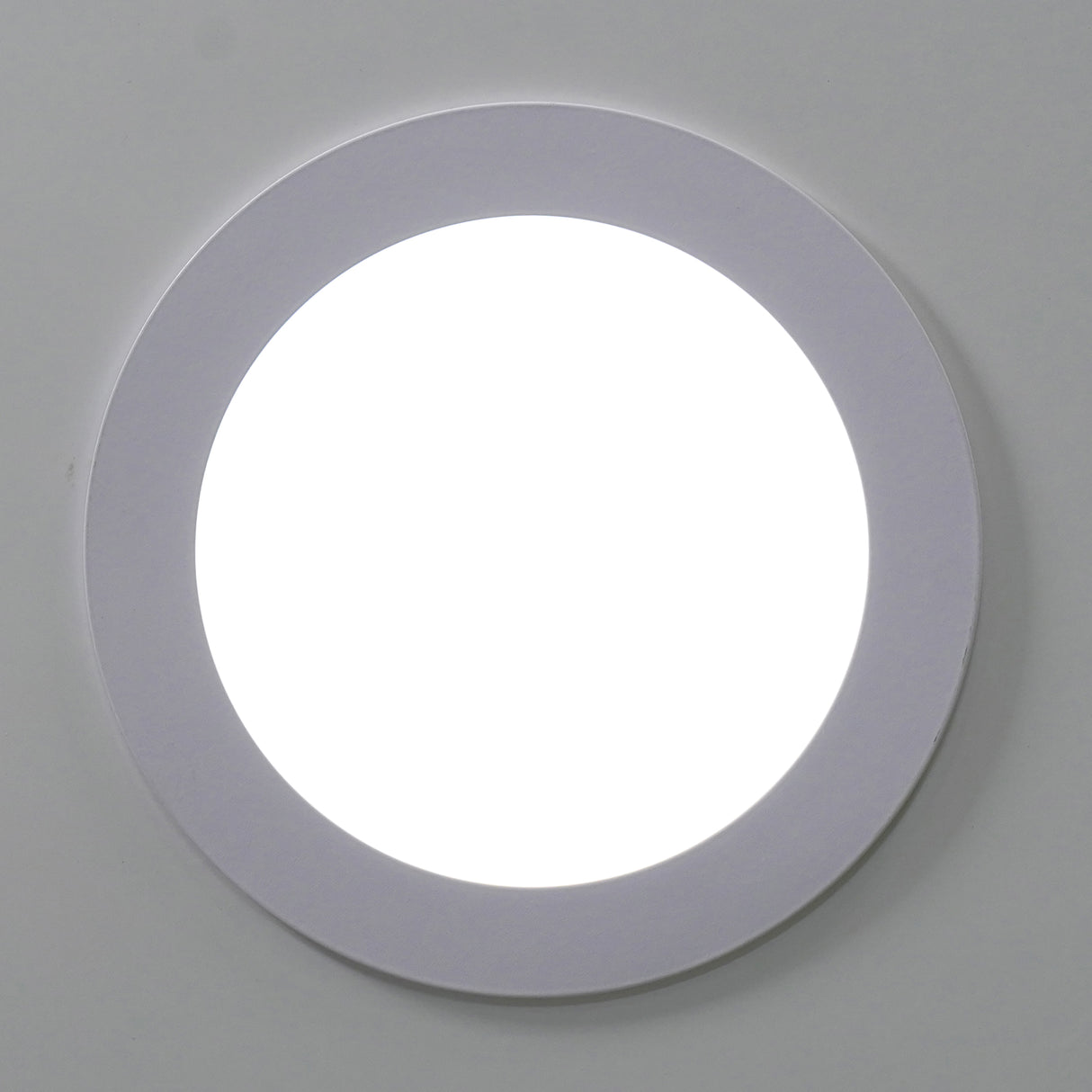

SLIM6-5CCT

6" round slim LED downlight with selectable CCT and interchangeable trims for customizable, low-profile lighting.

HIGHLIGHTS

Optics: Edge-lit technology for no glare, no dark spots, and instant-on illumination
Housing: No recessed housing or junction box required
Dimming: TRIAC dimmable down to 10%
Insulation Rating: IC rated for direct contact with insulation (indoor only)
Location Rating: Suitable for wet locations (indoor only)
Lifespan: Rated for over 50,000 hours of operation
Cable: FT6 plenum-rated cable included
CCT Options: 5-color field selectable—2700K, 3000K, 3500K, 4000K, 5000K

PRODUCT SHEETS

Spec Sheet

SLIM6-5CCT Spec Sheet

Instruction Manual

SLIM6-5CCT Instruction Manual

Dimmer List

SLIM6-5CCT Compatible Dimmer List

IES Files

SLIM6-5CCT IES Files

5CCT Selectable

Specifications

Wattage

15W
Voltage

120V AC
Lumens

1300 lmn
Beam Angle

120°
CRI

80
Air Tight

Yes
Dimmable

Yes (TRIAC dimming)
Lifetime

50,000 hours
Rating

IC Rated / Indoor use / for Wet Location (indoor use only)
Grade of Protection

IP44
Application

Recessed ceiling / Halls / Home / Office / Store / Cafe
Cutout

Ø6-19/64" (160mm)
Colour Temperature

5CCT [2700K/3000K/3500K/4000K/5000K]
Operating Temperature

-20°C ~ +45°C
Warranty

5 Years
Case Quantities

18

Product features

DECORATIVE TRIMS (sold separately)

Black

SLIM6-RINGBK
(Black)

Satin Nickel

SLIM6-RINGSN
(Satin Nickel)

Chrome

SLIM6-RINGCH
(Chrome)

Vintage Brass

SLIM6-RINGVB
(Vintage Brass)

Chrome Black

SLIM6-RINGCBK
(Chrome Black)

ACCESSORIES (sold separately)

PLATE13-6, PLATE13-6-L, PLATE26-6, PALTE26-6-L

LATE13-6, PLATE13-6-L, PLATE26-6, PALTE26-6-L
(Construction plate made up of galvanized steel for recessed lighting)

PLATE6-HB

PLATE4A-HB
(Galvanized steel mounting plate with hanger bars)

CORD-FT6-24/FT6-120

CORD-FT6-24/FT6-120
(Flexible Connector 2FT/10FT)

DMD-ELV

DMD-ELV
(Electronic low voltage dimmer switch with single pole 3 way wiring)
