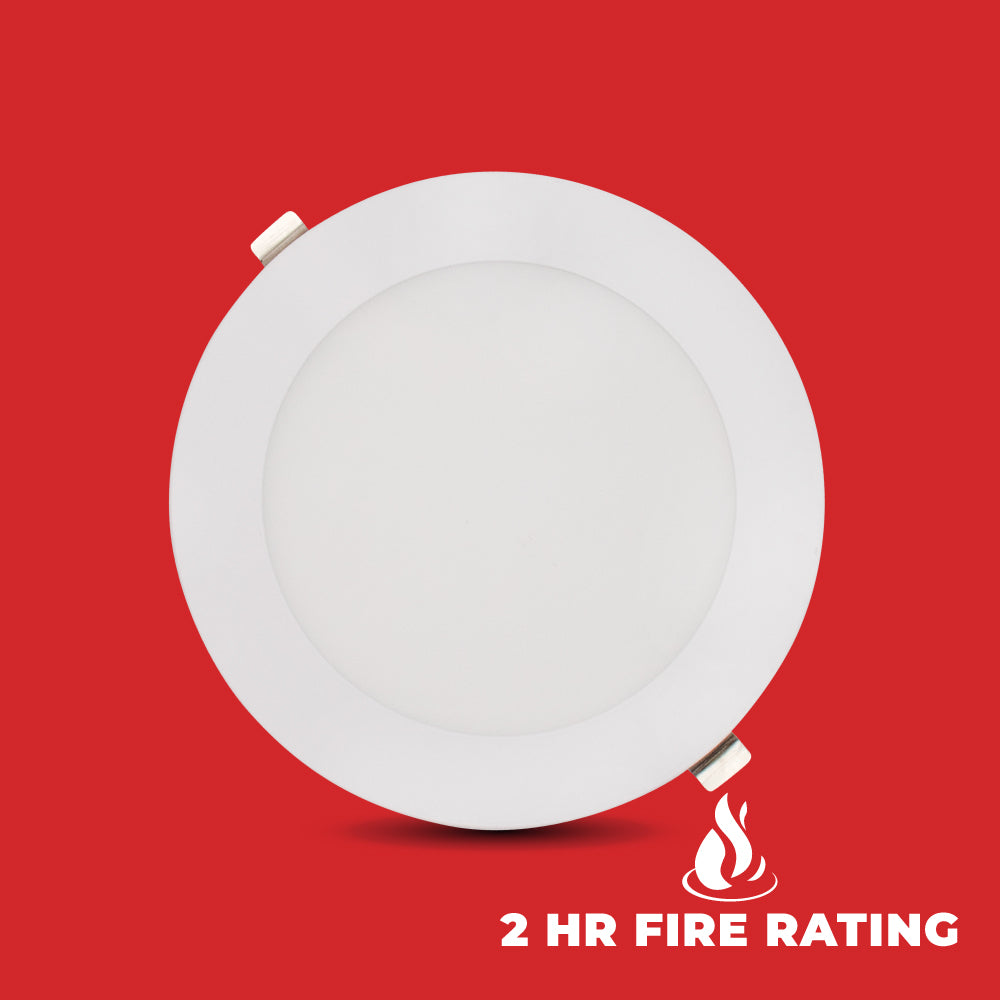

SLIM6FR-5CCT

6” LED fire-rated recessed downlight with selectable CCT for secure, code-compliant lighting in residential or commercial spaces.

HIGHLIGHTS

Fire Rating: Reinforced, heat-resistant steel casting provides 2-hour fire protection
Driver: Commercial-grade driver housed in included junction box
Installation: Quick and easy setup with no additional box required
CCT Options: 5-color field selectable—2700K, 3000K, 3500K, 4000K, 5000K
Cable: FT6 plenum-rated cable for safe in-ceiling installations
Tested & Certified to comply with UL 263-2011(R2022) & ASTM E119-20 & CAN/ULC-S101-14 (click to see the Test Report)
Rated for ceiling assemblies with up to 2 layers of drywall, each 5/8 inch, for a total of 1-1/4 inches

2 HOUR FIRE RATING

Specifications

Wattage

15W
Voltage

120V AC
Lumens

1000 lmn
Beam Angle

120°
CRI

80
Air Tight

Yes
Dimmable

Yes (TRIAC dimming)
Lifetime

50,000 hours
Rating

IC rated/ Indoor use/ Wet Location
Grade of Protection

IP54
Application

Recessed ceiling / Balcony / Overhanging eaves
Cutout

Ø6-1/4” (158mm)
Colour Temperature

5CCT [2700K/3000K/3500K/4000K/5000K]
Operating Temperature

-20°C ~ +40°C
Warranty

5 Years
Case Quantities

18

CERTIFICATIONS

Product features

DECORATIVE TRIMS (sold separately)

SLIM6-RING BK

SLIM4-RING BK"
(Black ring)

SLIM6-RING SN

SLIM4-RING SN
(Satin Nickel)

ACCESSORIES (sold separately)

PLATE13-6 | PLATE13-6-L | PLATE26-6 | PLATE26-6-L

PLATE13-6 | PLATE13-6-L | PLATE26-6 | PLATE26-6-L"
(Construction plate made up of galvanized steel for recessed lighting)

PLATE6-HB

PLATE6-HB
(Galvanized steel mounting plate with hanger bars)

CORD-B24 | CORD-B120

CORD-B24 | CORD-B120
(Flexible Connector 2FT/10FT)

DMD-ELV

DMD-ELV
(Electronic low voltage dimmer switch with single pole 3 way wiring)

PRODUCT SHEETS

Spec Sheet

SLIM6FR-5CCT Spec Sheet

Instruction Manual

SLIM6FR-5CCT Instruction Manual

Dimmer List

SLIM6FR-5CCT Compatible Dimmer List

IES Files

SLIM6FR-5CCT IES Files
