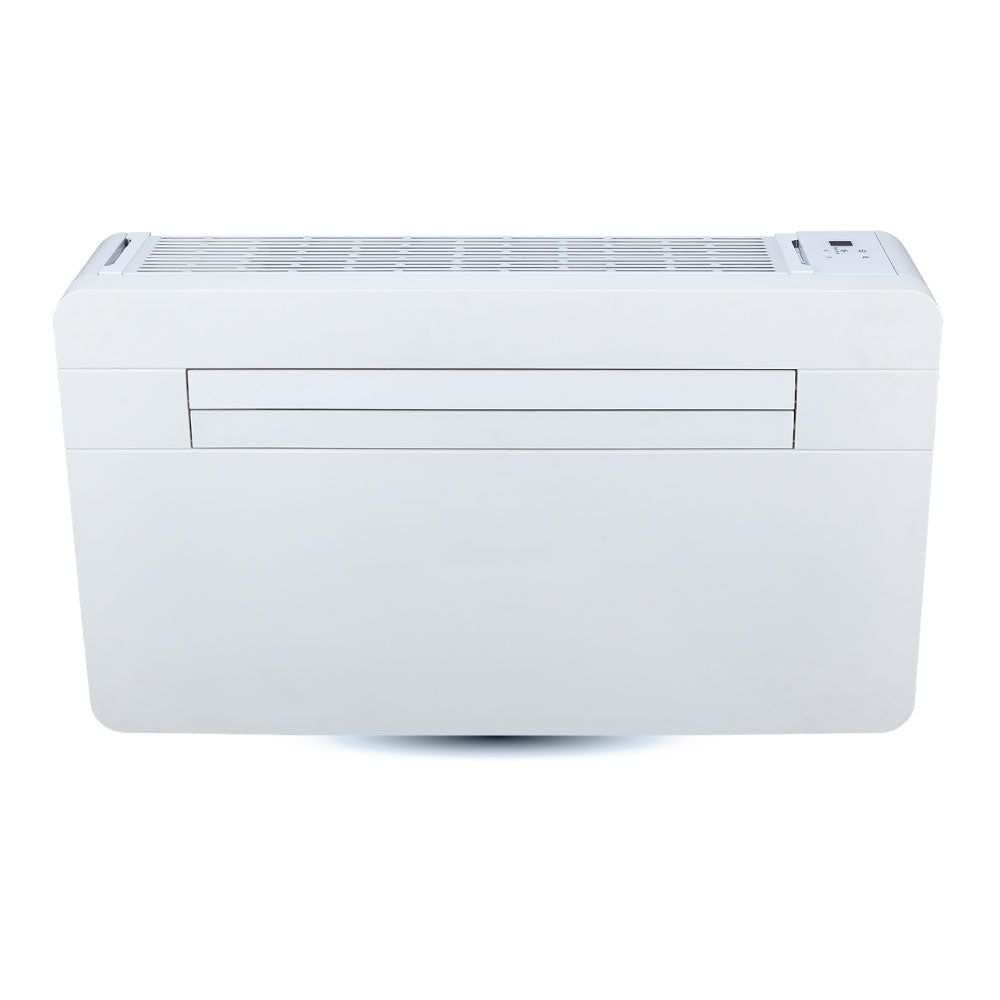

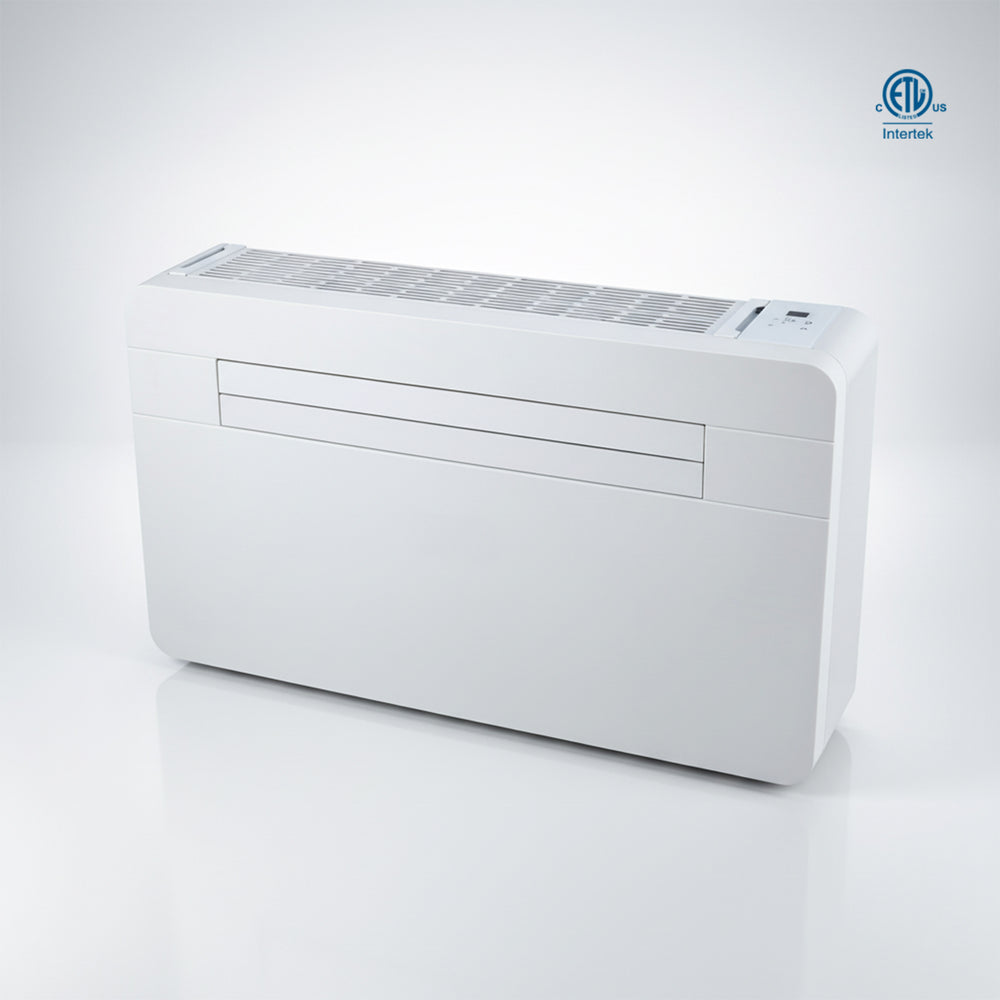

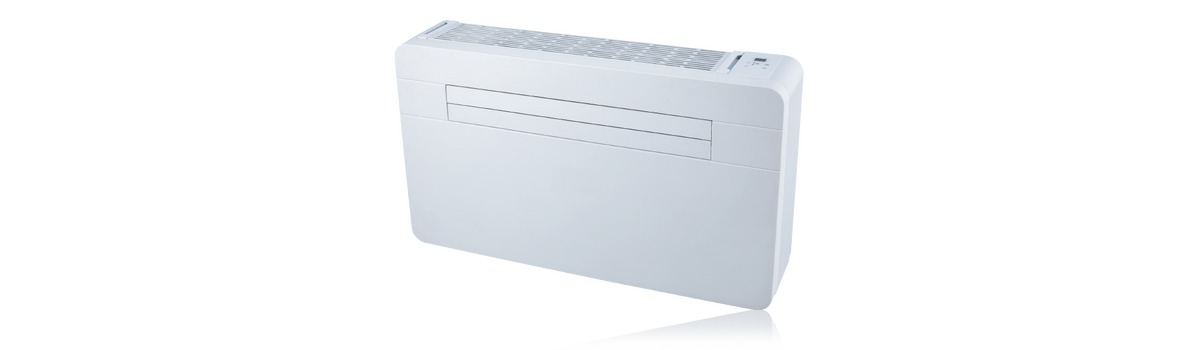

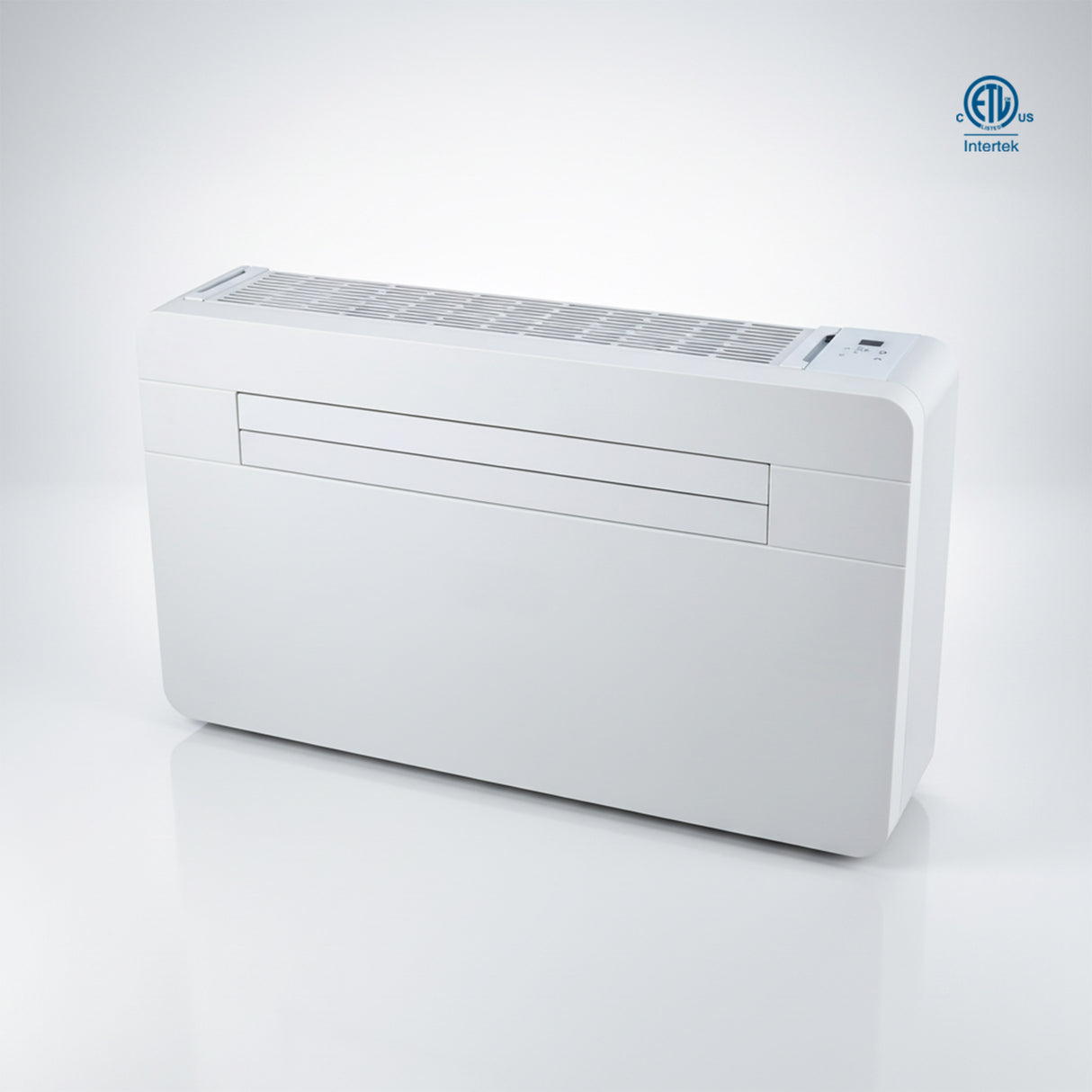

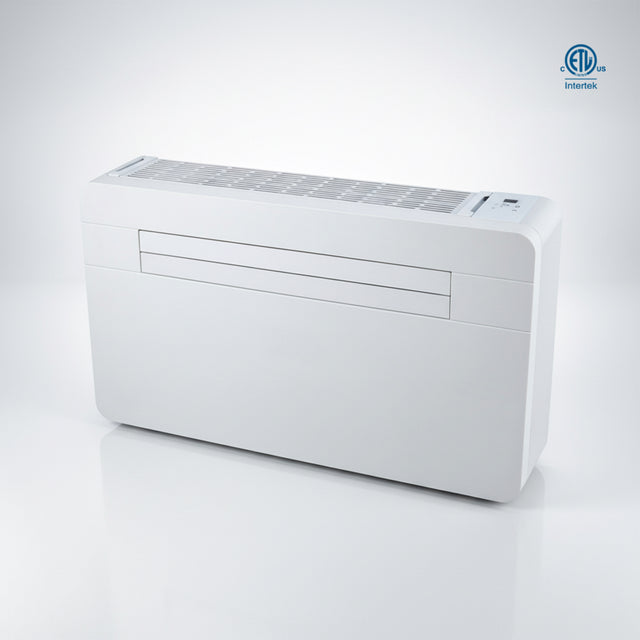

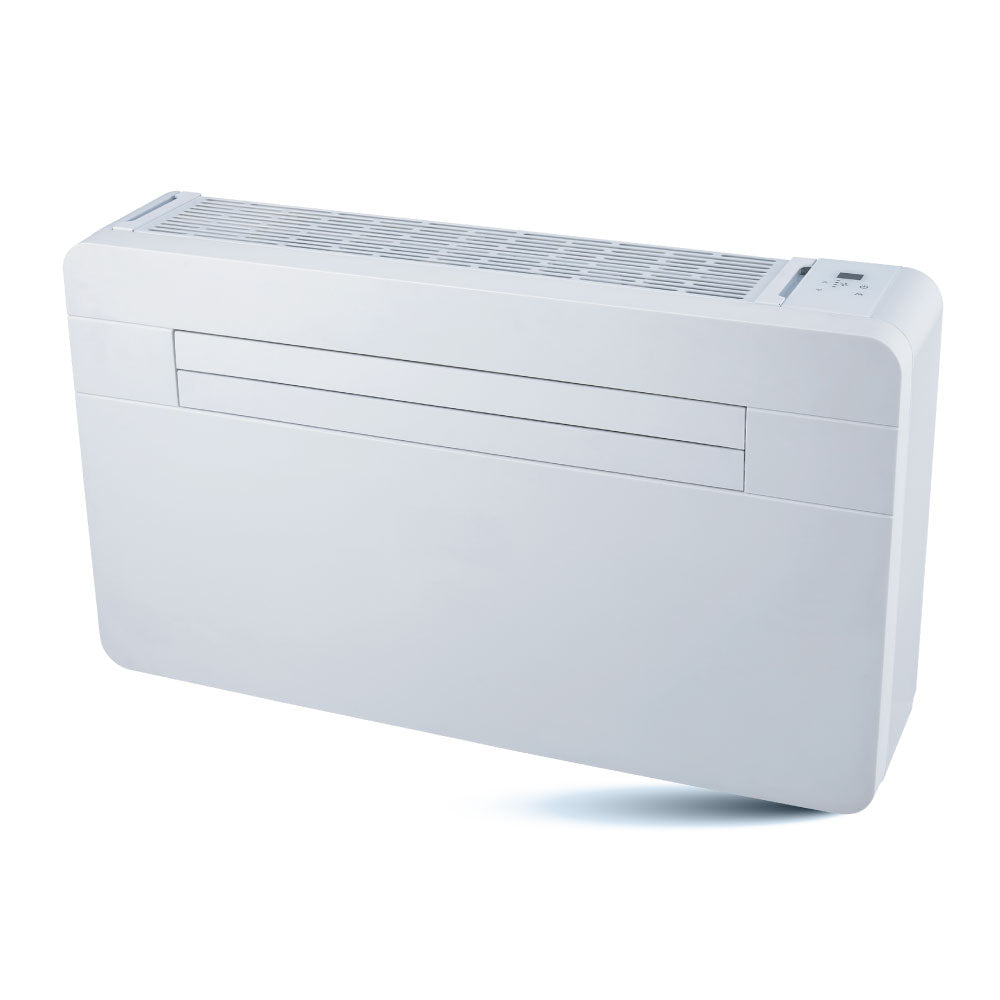

SOLO 7

All-in-one heat pump with 7K capacity delivering compact, high-performance power for ultimate climate control and year-round comfort.

HIGHLIGHTS

Sleek, All-in-One Design: Revolutionary heat pump system with no outdoor unit, preserving building aesthetics.
Energy Efficient & Quiet: Advanced inverter compressor and variable-speed motor ensure high efficiency and whisper-quiet performance.
Effortless Installation & Operation: Perfect for multi-family homes, offices, and hotels with reliable, low-maintenance heating and cooling.
No Outdoor Unit: This sleek, all-indoor heat pump eliminates the need for an outdoor unit, making installation easier and more versatile.
Venting Through Two Wall Ducts: Efficiently expels and intakes air through just two small wall ducts, reducing structural impact and maintaining the aesthetics of your building.
Dual Functionality (Heating & Cooling): Enjoy year-round comfort with seamless heating and cooling in a single, energy-efficient unit.
Drain pan heater: Ensure condensate water does not freeze in drain pan.
Suitable for both new construction & any type of retrofit requirement
EC fan motor

PRODUCT SHEETS

INVISIBLE OUTSIDE, INCREDIBLE INSIDE

Cooling Capacity

7,158 Btu/h
(Min-Max: 3,016-7,974 Btu/h)
Heating Capacity

7,095 Btu/h + 600W / 900W(electric heat)
(Min-Max: 3,084-7,247 Btu/h)
Electrical

Voltage: 115V/60Hz/single phase
Cooling / HP only: MCA: 8A, MOCP: 10A
HP + 0.6kW EH: MCA: 15A, MOCP: 15A
HP + 1.0kW EH: MCA: 19A, MOCP: 20A
Sound

44 / 49 / 61 db(A)
Fan Data

150-340 CFM
Operating Range

Cooling: 23°F - 109°F
Heating: 5°F - 75°F
Refrigerant

R32/12.7oz
Compressor

Invertor Technology
Modes

Cooling, Heating, Dehumidify, Auto
Size

36.8" x 21.4" x 7.8"
Efficiency

SEER2: 13.85 | HSPF2: 7.75
Fan Weight

86lbs
Power Supply

Power Cord or Hardwired

Check out the installation video

*Values are subject to change with model revisions. Always refer to the latest literature.

INDOOR TEMPERATURE
Maximum Operating Temperature in Cooling Mode	DB 80°F/26.7°C WB 19.4°F/67°C
Minimum Operating Temperature in Cooling Mode	DB 67°F/19.4°C WB 57°F/13.9°C
Maximum Operating Temperature in Heating Mode	DB 80°F/26.7°C
Minimum Operating Temperature in Heating Mode	DB 70°F/21.1°C WB 60°F/15.6°C

OUTDOOR TEMPERATURE
Maximum Operating Temperature in Cooling Mode	DB 115°F/46.1°C WB 75°F/23.9°C
Minimum Operating Temperature in Cooling Mode	DB 67°F/19.4°C WB 57°F/13.9°C
Maximum Operating Temperature in Heating Mode	DB 75°F/23.9°C WB 65°F/18.3°C
Minimum Operating Temperature in Heating Mode	DB 17°F/-8.3°C WB 15°F/-9.4°C
