WP120-3CCT+W

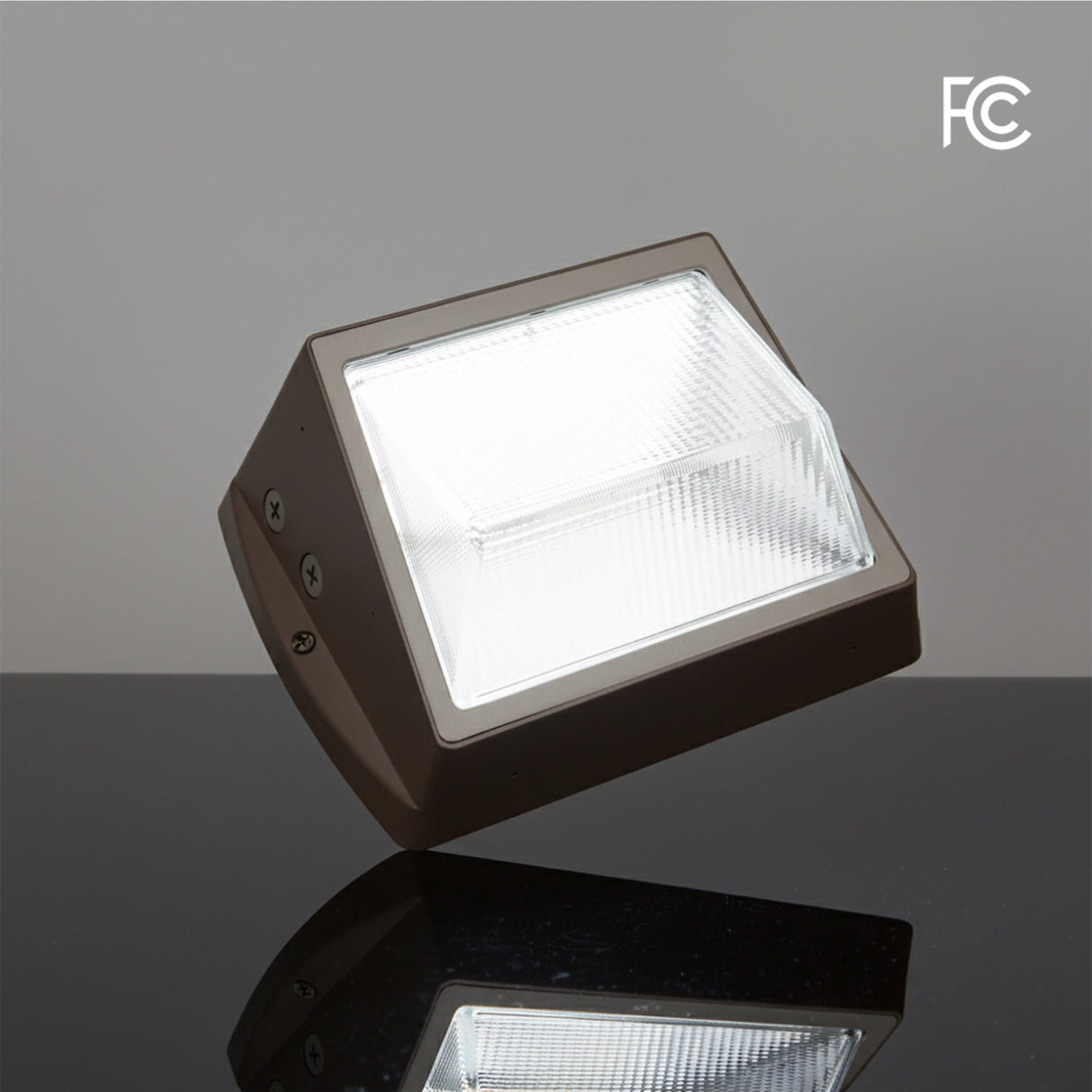

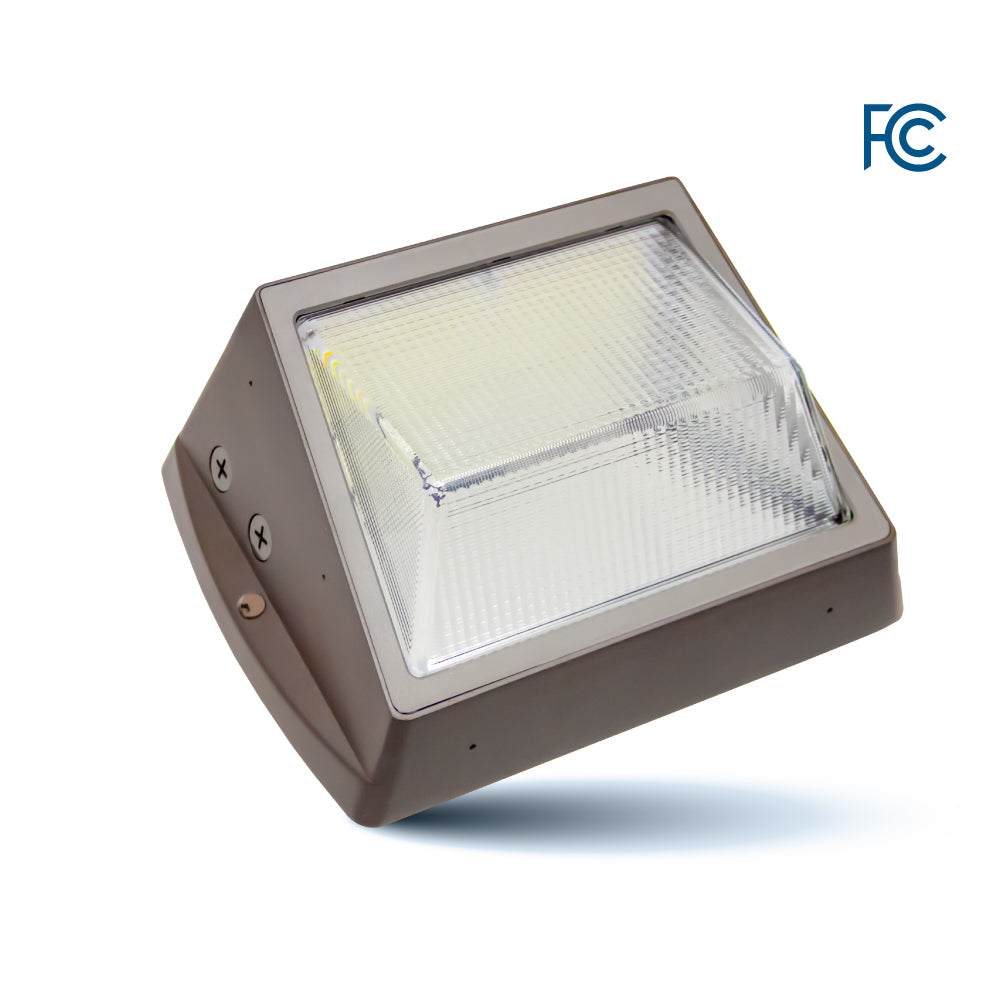

LED waterproof traditional wall packs with glass cover, featuring selectable CCT and wattage.

HIGHLIGHTS

  • Grade & Style: Commercial or residential grade LED traditional wall packs with glass cover
  • Wattage Options: Available in selectable wattage versions
  • Dust Protection: Dustproof design for enhanced durability
  • Photocell Sensor: Built-in sensor with switch to enable or disable functionality
  • Dimming Capability: 0–10V dimmable for adjustable brightness
  • Wet Location Use: Suitable for wet locations with proper sealing
  • Installation Note: Requires waterproof sealant between wall and wall pack edge for full weatherproofing

DLC No. / Product ID: S-KFK39R

PRODUCT SHEETS

Spec Sheet

WP60-3CCT+W Spec Sheet

Instruction Manual

WP60-3CCT+W Instruction Manual

Dimmer List

WP60-3CCT+W Dimmer Compatible List

IES Files

WP60-3CCT+W IES files

3CCT AND WATTAGE SELECTABLE With Built-in photocell sensor

Specifications
  • Wattage
    80W/100W/120W
  • Voltage
    AC 120-347V
  • Lumens
    125 lmn/W
  • Beam Angle
    70°x110° - different direction has different beam angle
  • CRI
    70Ra+
  • Dimmable
    Yes (only 0-10V dimming available)
  • Lifetime
    50,000 Hours
  • Rating
    Wet location
  • Application

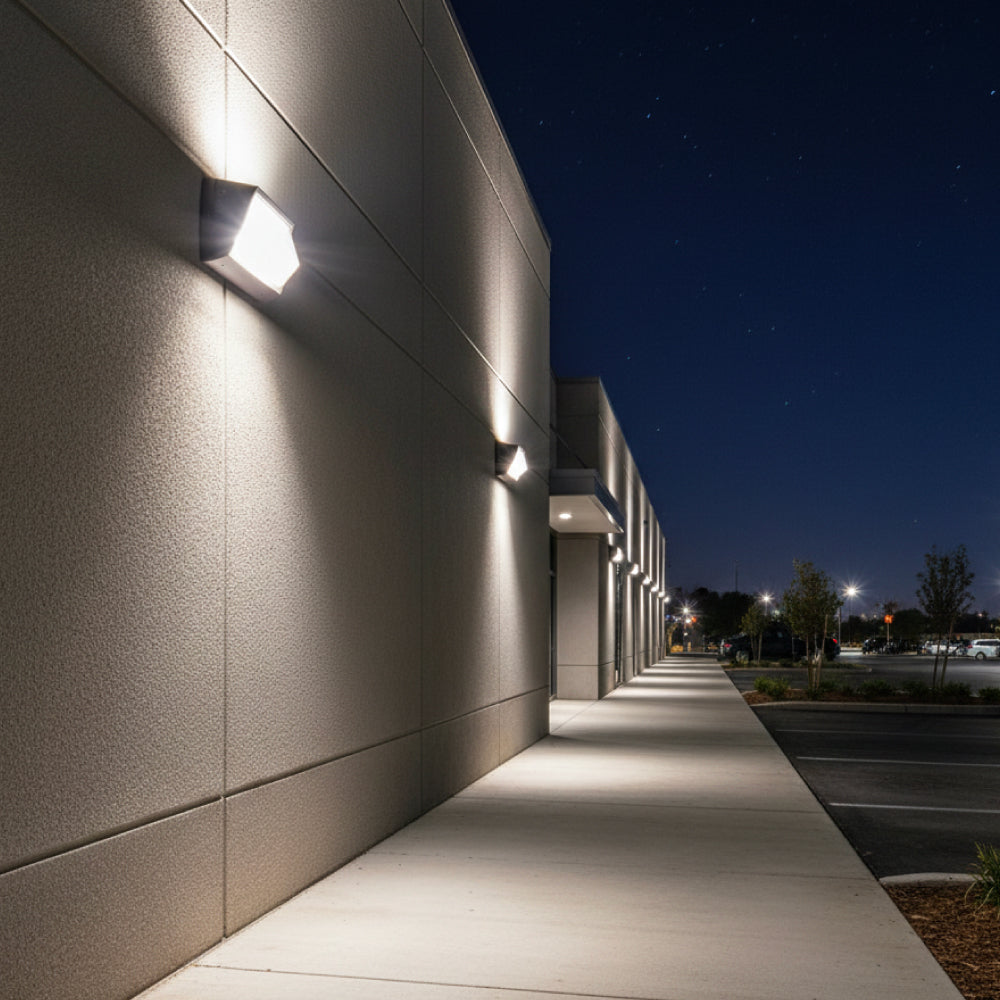

    Warehouses / Residential spaces / Industrial spaces, etc.
  • Colour Temperature

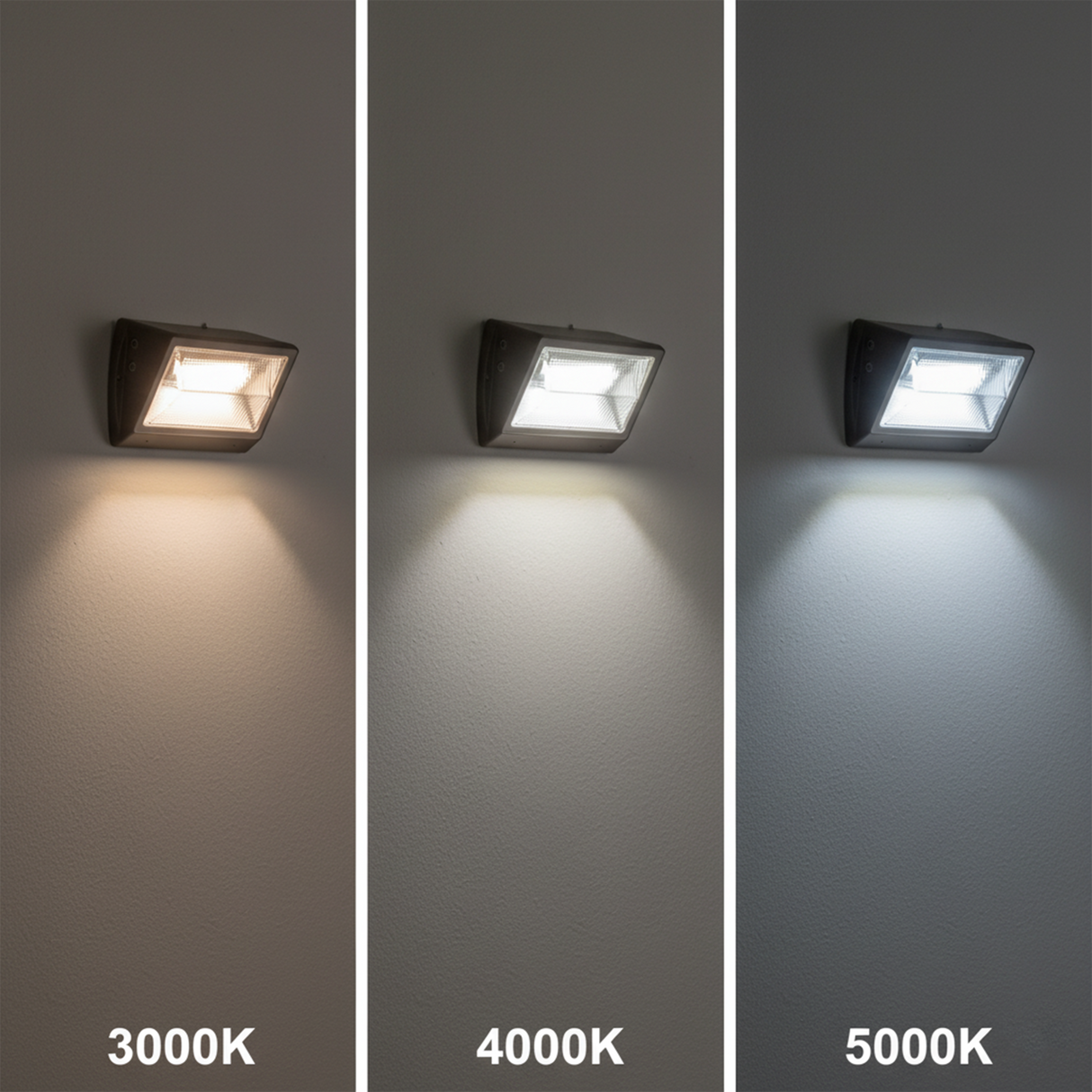

    3CCT [3000K/4000K/5000K]
  • Lamp Shell
    Brown
  • Material
    ADC12
  • Operating Temperature
    -40°C~40°C
  • Warranty
    5 Years
  • Case Quantities
    1

Product features

Check Out the Video on How to Install
