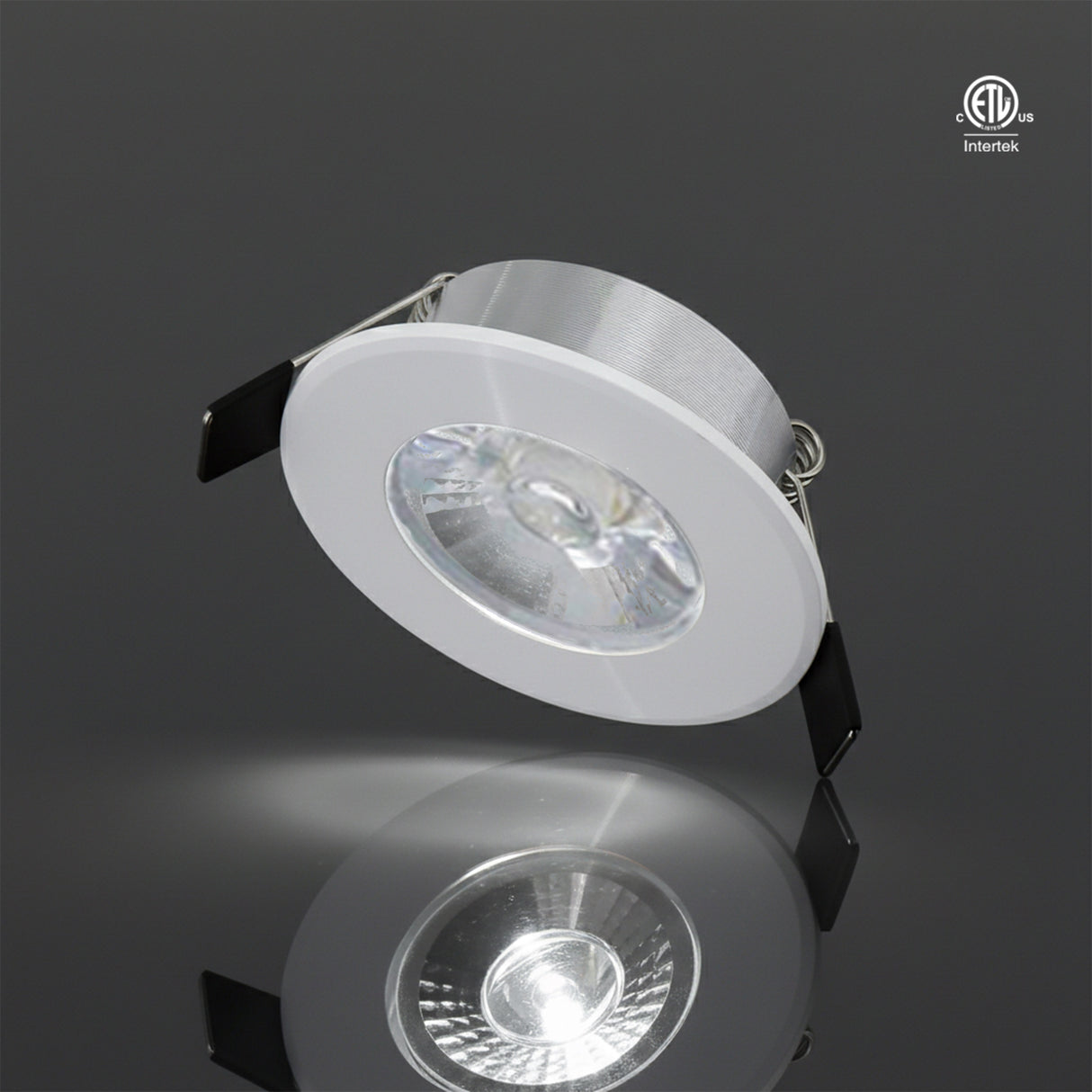

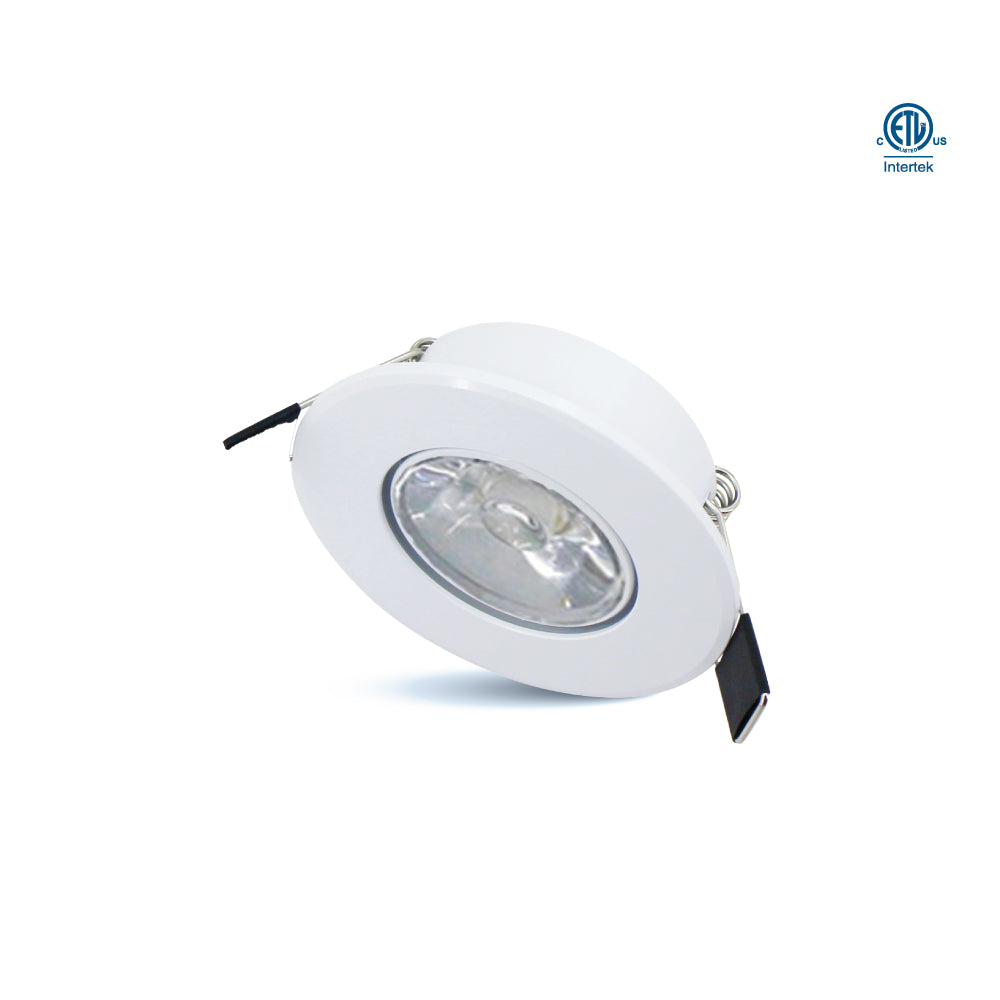

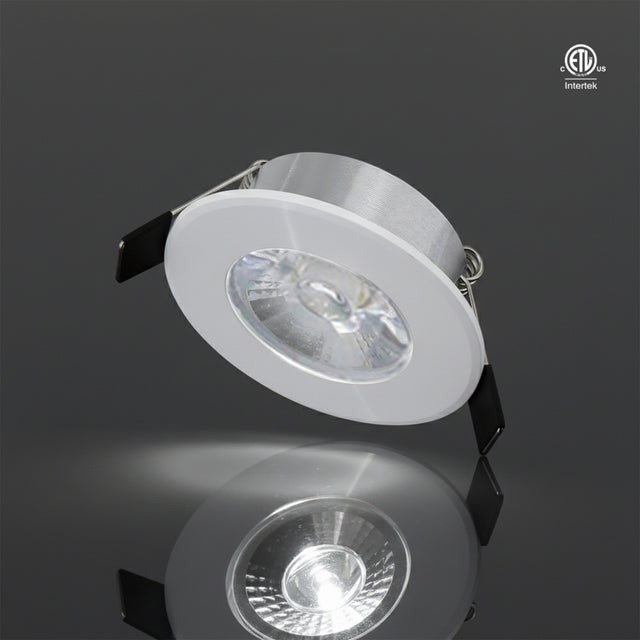

PUK M3G

Mini LED gimbal puck lights for indoor use only, offering compact and adjustable directional lighting.

Color: White

HIGHLGIHTS

  • Quick and Safe Installation: Easy to install and designed for safe, ready-to-use operation.
  • Wiring Included: Comes with two loose wires for straightforward electrical setup.
  • Exceptional Energy Savings: Reduces electricity usage by up to 90%, making it highly cost-effective.
  • High Brightness Output: Each LED puck light delivers strong illumination with a CRI over 80 for accurate color rendering.
  • Versatile Lighting Applications: Ideal for cabinets, closets, shelves, wine bars, and other compact spaces.
  • Reliable Under-Cabinet Illumination: Provides ample brightness for everyday tasks and ambient lighting.
  • Energy-Efficient Performance: Each LED light matches the output of a 35W incandescent, fluorescent, or halogen lamp.

PRODUCT SHEETS

Spec Sheet

PUK M3G Spec Sheet

Instruction Manual

PUK M3G Instruction Manual

Dimmer List

NA

IES Files

NA

For Indoor Use Only

Specifications
  • Wattage
    3W
  • Voltage
    12V DC
  • Lumens
    300 lmn
  • Beam Angle
    21°
  • CRI
    80
  • Dimmable
    Yes (TRIAC dimming)
  • Lifetime
    50,000 hours
  • Rating
    Non-IC Rated / Indoor use / for Damp location
  • Grade of Protection
    IP54
  • Application
    Under cabinet / Home / Office / Kitchen / Workshop etc.
  • Cutout
    Ø2-15/16" (58mm)

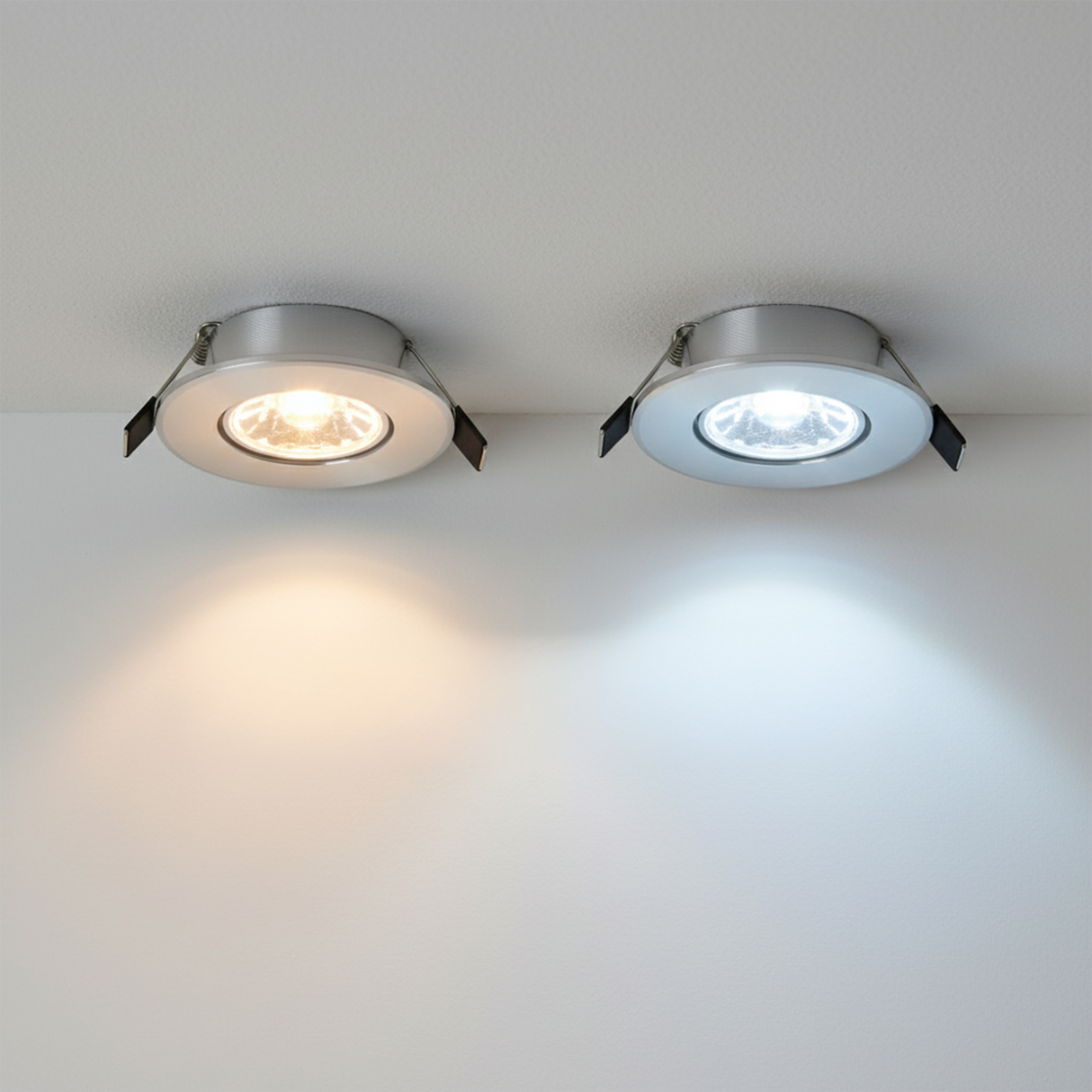

  • Colour Temperature
    3000K/5000K
  • Operating Temperature
    -20°C ~ +40°C
  • Warranty
    5 years

Certifications

Accessories (sold separately)

PUK-EXT
PUK-EXT
Extension Cord

Compatible Drivers (sold separately)

OT-08D
OT-08D
Max. 8W class 2 driver
OT-15D
OT-15D
Max.15W class 2 driver
OT-24D
OT-24D
Max. 24W class 2 driver
OT-48D
OT-48D
Max. 48W class 2 driver
OT-60D
OT-60D
Max.60W class 2 driver
OT-96D
OT-96D
Max. 96W class 2 driver
